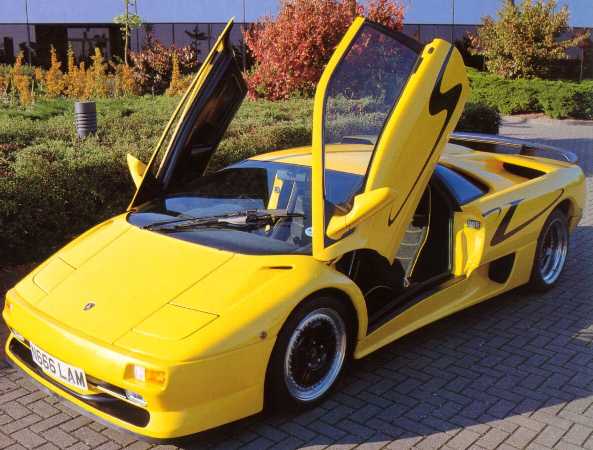

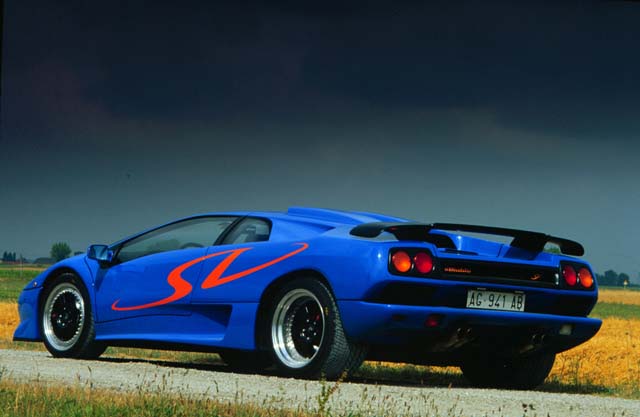

| 1997 Lamborghini Diablo SV | www.supercars.net |
| General | |||
|---|---|---|---|
| Make | Lamborghini | Model | 1996 Diablo SV |
| Powertrain Layout | Mid Engine / RWD | Base Price |USD| | Not Available |
| Dimensions | |||
| WheelBase | 2649 mm / 104.3 in | Length | 4470 mm / 176.0 in |
| Height | 1115 mm / 43.9 in | Width | 2040 mm / 80.3 in |
| Front / Rear Track | F 1539 mm / 60.6 in R 1641 mm / 64.6 in |
Weight | 1526 kgs / 3365 lbs |
| Engine | |||
| Configuration | V12 | Valvetrain | DOHC 4 Valves/Cyl |
| Displacement | 5707 cc / 348.1 cu in | Bore | 87 mm / 3.4 in |
| Power | 252 Kw / 530 bhp @ 7100 RPM | Stroke | 80.0 mm / 3.15 in |
| Compression Ratio | 10.0:1 | Torque | 603 Nm / 445 ft lbs @ 5500 RPM |
| Power/Liter | 89.36 | Power/Weight | 0.33 |
| Transmission | |||
| Type | 5-Speed Manual | Final Drive | Not Available |
| 1st Gear Ratio | Not Available | 2nd Gear Ratio | Not Available |
| 3rd Gear Ratio | Not Available | 4th Gear Ratio | Not Available |
| 5th Gear Ratio | Not Available | 6th Gear Ratio | Not Available |
| Chassis & Body | |||
| Steering | Rack & Pinion w/Power Assist | Tire Sizes | F 245/40ZR-17 R 335/30ZR-18 |
| Brake Types | Vented Discs | Brake Size | F 330 mm / 13.0 in R 315 mm / 12.4 in |
| Available ABS | No | Body Material | Aluminum Alloy |
| Performance | |||
| Top Speed | 335 kph / 208 mph | 0 - 30 mph | 1.8 seconds |
| 0 - � mile | Not Available | 0 - 60 mph | 3.8 seconds |
| Lateral Acceleration | Not Available | 0 - 100 mph | 8.0 seconds |
| Drag | Not Available | EPA City/Hwy | Not Available |
| Comments | |||
| |||
